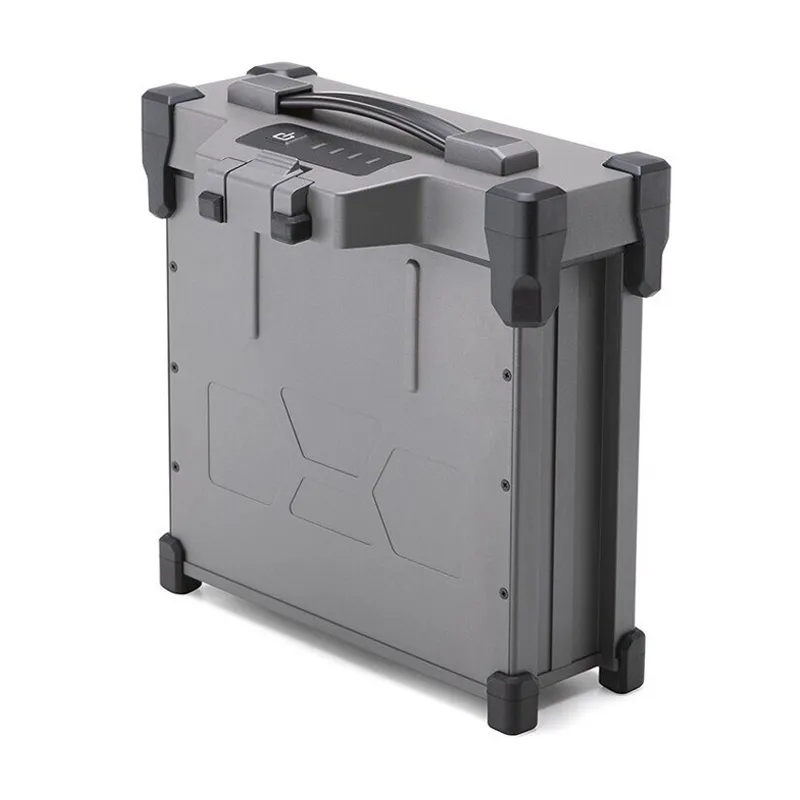

DJI Agras T20 Intelligent Flight Battery
The DJI Agras T20 Intelligent Flight Battery is a high-capacity, smart power source designed specifically for the DJI Agras T20 agricultural drone. It provides extended flight times and reliable power management to support large-scale farming operations and precision agriculture.
Key Specifications
Capacity: 9700 mAh
Voltage: 22.2V
Energy: 215 Wh
Maximum Flight Time: Approximately 20-25 minutes (subject to payload and environmental conditions)
Weight: About 3.3 kg
Charge Time: Around 2 hours with DJI-approved chargers
Charge Cycles: Over 300 cycles for durable, long-term use
Design and Build
The T20 battery features a robust, weather-resistant casing suitable for outdoor agricultural environments. Its secure locking mechanism ensures safe attachment to the drone, and LED indicators display real-time charge and status information.
Smart Management System
Equipped with DJI’s advanced intelligent battery management system (BMS), the T20 continuously monitors key parameters such as voltage, temperature, and capacity. It communicates seamlessly with the drone’s flight controller and DJI Agriculture app, providing real-time health status, alerts, and usage data.
Features:
Real-time voltage, temperature, and capacity monitoring
Cycle count tracking to manage lifecycle
Health and safety notifications
Automatic balancing during charging and discharging
Alert system for abnormal conditions
Safety Features
The T20 battery incorporates multiple safety protections:
Overcurrent and overvoltage safeguards
Thermal regulation with automatic shutdown if overheating occurs
Short-circuit prevention
Automatic balancing to ensure uniform cell health
Safe storage mode to prevent over-discharge
Lifecycle and Maintenance
Designed for intensive agricultural applications, the T20 supports over 300 charge cycles. Proper maintenance includes:
Regular health checks via the DJI Agriculture app
Using DJI-approved chargers for safe and efficient charging
Storing in a cool, dry environment when not in use
Avoiding complete discharges and overcharging to prolong lifespan
User Guidelines
Pre-flight: Confirm battery charge and health before operation.
Charging: Always use DJI-certified chargers.
Storage: Keep in a cool, dry place, especially during non-use periods.
Monitoring: Use the DJI Agriculture app to monitor battery status and health during operation.
Conclusion
The DJI Agras T20 Intelligent Flight Battery offers reliable, high-capacity power tailored for demanding agricultural drone operations. Its smart management and safety features ensure efficient performance, longer flight times, and operational safety, supporting large-scale farming tasks effectively.
