DJI AS1 Enterprise Drone Speaker
Overview

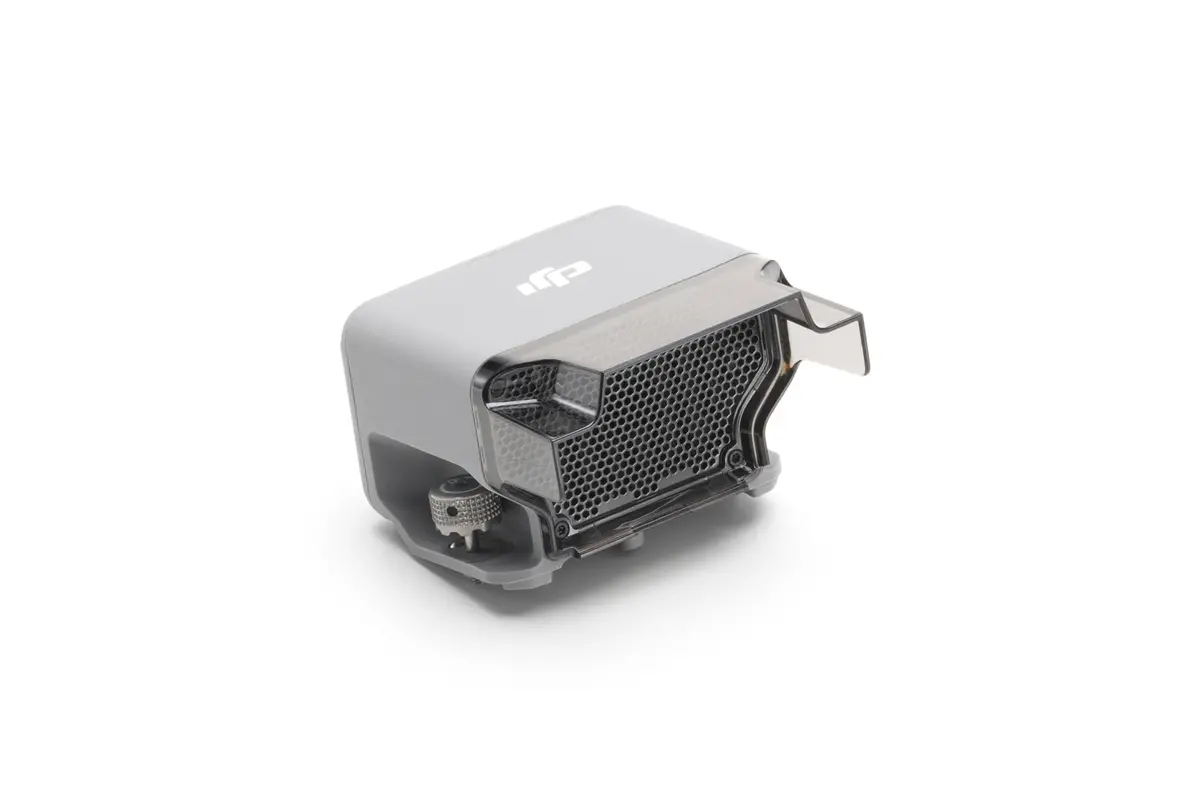

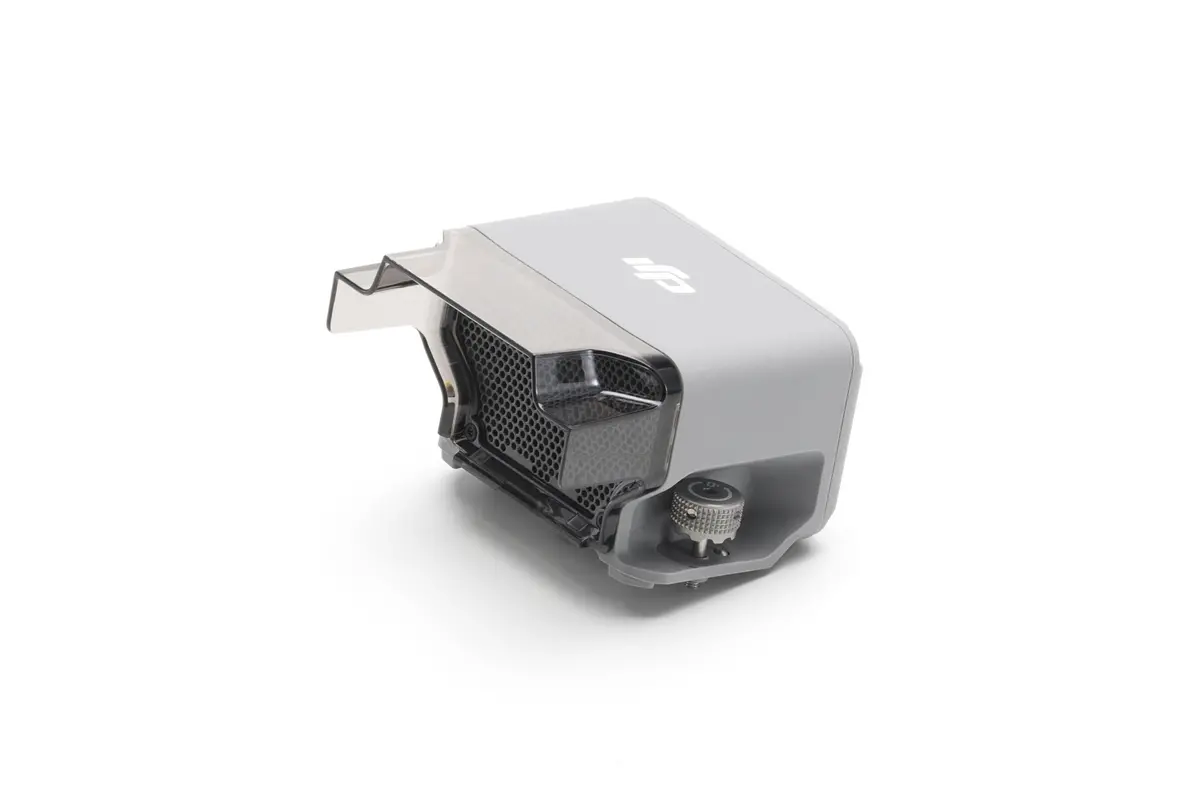

The DJI AS1 Speaker is a lightweight, high-decibel payload accessory engineered specifically for the DJI Matrice 4 Enterprise Series drones. Designed to facilitate ultra-clear aerial communication over long distances, this tactical speaker allows operators to broadcast live voice messages or play pre-recorded audio from the air. It is a critical tool for public safety, search and rescue, law enforcement, disaster response, and wide-area industrial operations.
Key Features
-
Long-Range Acoustic Projection: Delivers an intense acoustic output of up to 114 dB at 1 meter, allowing clear communication even over high ambient background drone noise. It features an effective broadcast range of up to 300 meters.
-
Dynamic Broadcast Modes:
-
Real-Time Broadcasting: Delivers live voice transmission from the ground controller with integrated echo suppression for minimal feedback and maximum clarity.
-
Text-to-Speech (TTS): Converts typed digital text inputs into automated vocal announcements (currently optimized for English and Chinese).
-
Media Import & Audio Playback: Supports importing pre-recorded media files for looped alerts, sirens, or specific instructional prompts.
-
-
Modular Enterprise Rigging: Built with a quick-release design featuring hand-tightened screws for tool-free, rapid deployment on the staging ground.
-
Integrated Co-Operation: Engineered to work seamlessly alongside tactical lighting payloads (like the DJI AL1 Spotlight). For shared operations, the modular lower adapter bracket can be easily detached to let both tools function together.
-
Industrial Durability: Features an IP55 ingress protection rating (when correctly sealed on the Matrice 4 platform) and operates reliably in extreme environments ranging from -20°C to 50°C.
Technical Specifications
| Specification Parameter | Technical Details |
| Compatibility | DJI Matrice 4 Series (e.g., Matrice 4T / 4TD) |
| Maximum Volume Output | 114 dB @ 1 meter |
| Effective Broadcast Range | Up to 300 meters |
| Maximum Power Supply | 15 W |
| Weight | 92.5 g (with bracket) / Approx. 90 g (without bracket) |
| Dimensions (L×W×H) | 73 × 70 × 52 mm (with bracket) |
| Ingress Protection | IP55 rated |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
In The Box
-
DJI AS1 Speaker × 1
-
Spare Adapter Bracket × 1
-
Hex Key × 1 (for securing permanent drone docking setups)
⚠️ Operational Safety Flight Notes:
Mounting the AS1 speaker to a Matrice 4 series drone will automatically disable the upward obstacle avoidance sensors and slightly alter aerodynamic power performance.
Ensure the payload is fully calibrated through the DJI Pilot app interface before takeoff. Avoid playing continuous single-frequency tones to prevent hardware damage, and never deploy the speaker at close-range maximum volume near people.
