DJI TB51 Intelligent Flight Battery
The DJI TB51 Intelligent Flight Battery is a compact, smart power source designed primarily for the DJI Mavic Air 2 drone. It combines high energy capacity with advanced safety and management features, ensuring reliable flight performance and ease of use for recreational and professional users.
Key Specifications
Capacity: 3500 mAh
Voltage: 11.55V
Energy: 40.4 Wh
Maximum Flight Time: Up to 34 minutes (under optimal conditions)
Weight: Approximately 200 grams
Charge Time: About 1.5 hours with DJI-approved chargers
Charge Cycles: Over 200 full cycles for durable longevity
Design and Build

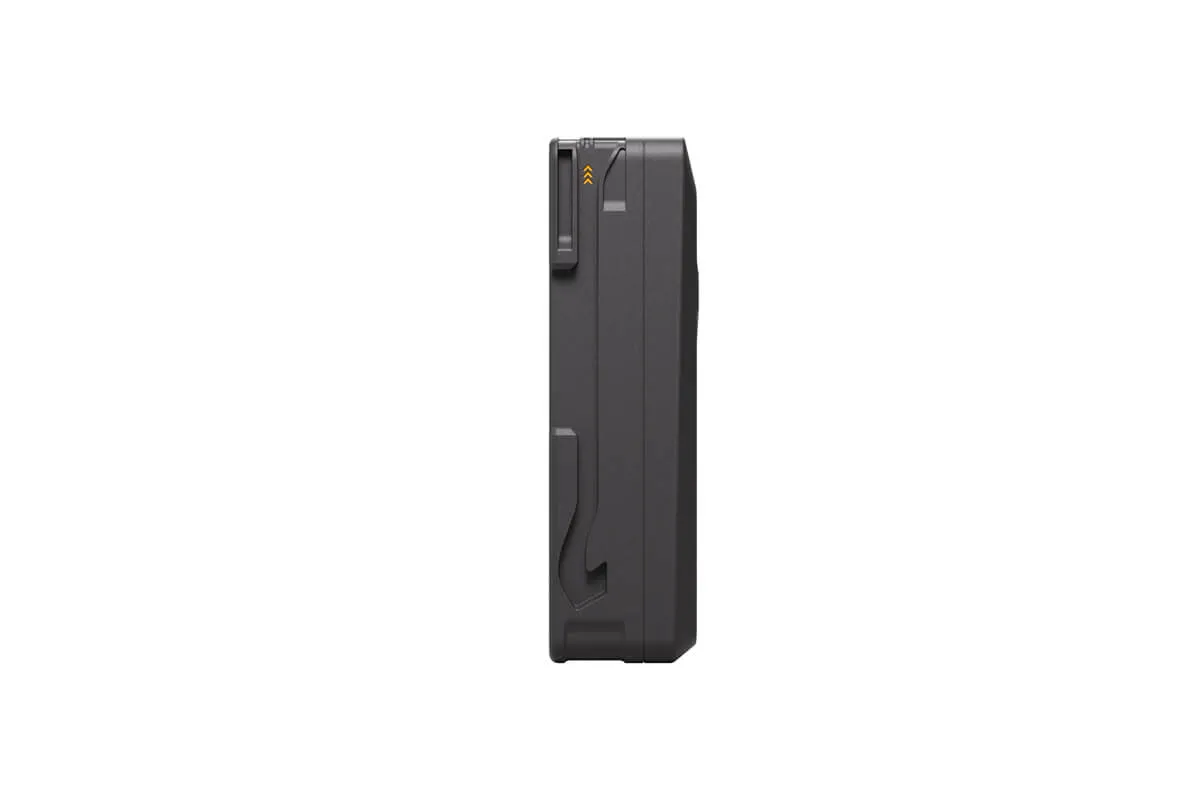

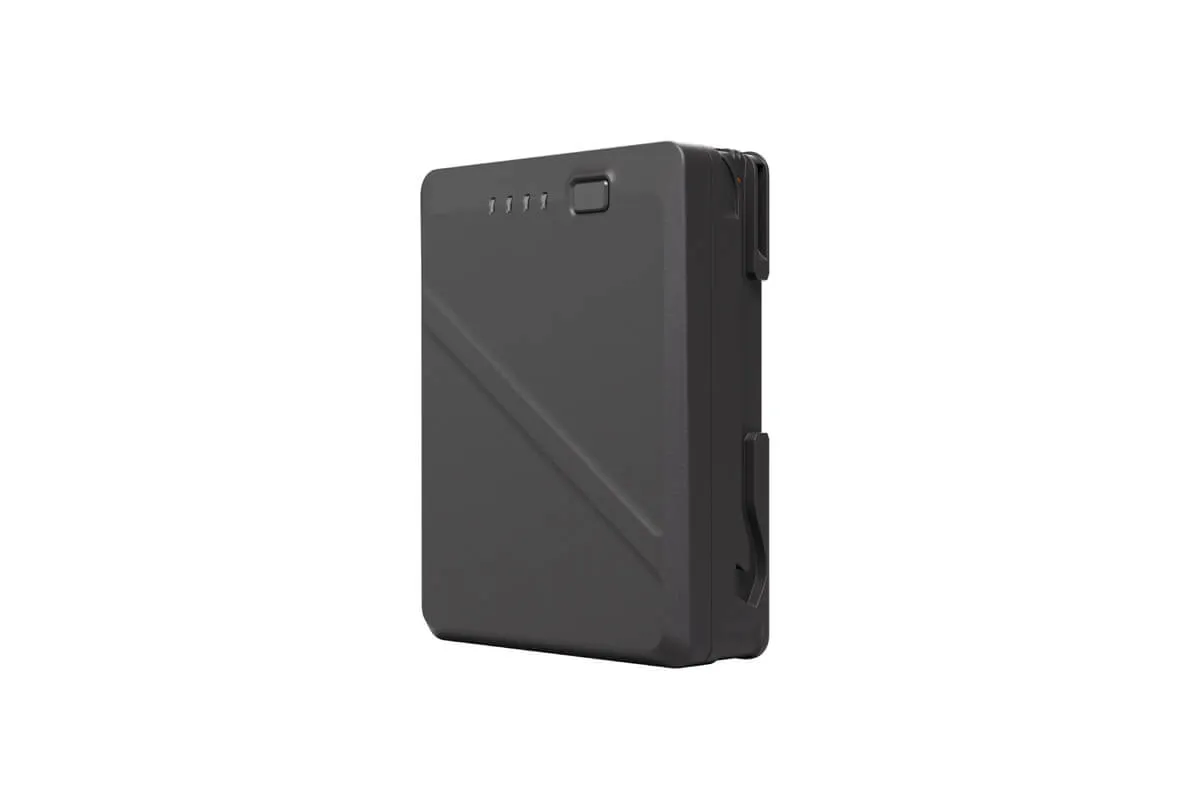

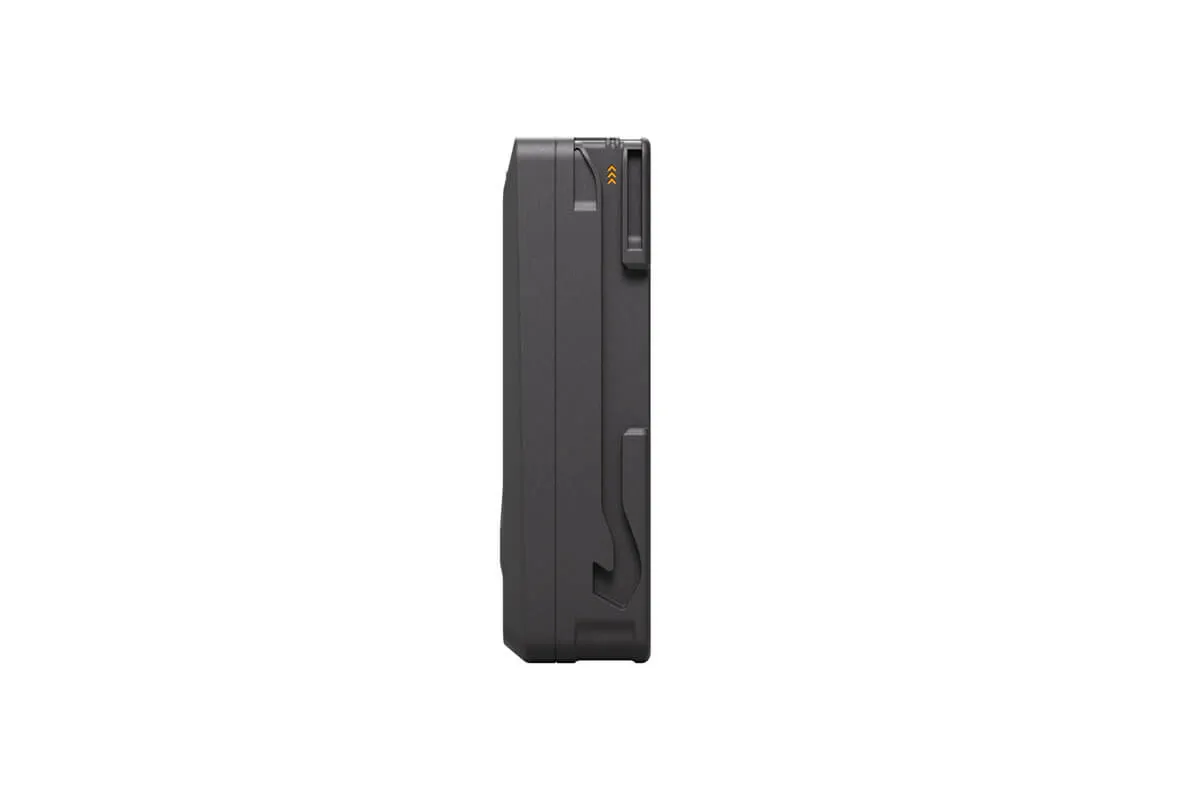

The TB51 features a lightweight, compact design with a protective casing that ensures durability during flight. Its intuitive LED indicators display the battery status at a glance, and the secure locking mechanism guarantees safe attachment to the drone.
Smart Management System
Equipped with DJI’s intelligent battery management system (BMS), the TB51 constantly monitors parameters such as voltage, temperature, and capacity. It communicates with the drone's flight controller and DJI Fly app to provide real-time health status and alerts.
Inputs:
Real-time voltage, temperature, and capacity monitoring
Cycle count tracking
Battery health notifications
Low voltage and safety alerts
Safety Features
Safety is a priority with several protective features:
Overcurrent and overvoltage protection
Thermal regulation with automatic shutdown if overheating is detected
Short-circuit protection
Intelligent balancing during charging and discharging
Automatic discharge during storage to prevent overcharging
Lifecycle and Maintenance
Designed for frequent use, the TB51 supports over 200 full charge cycles. Maintenance tips include:
Regularly checking battery health via the DJI Fly app
Using DJI-approved chargers for optimal safety
Storing in a cool, dry environment when not in use
Avoiding complete discharges and overcharging
Input Points for Users
Pre-flight Checks: Ensure battery is fully charged and healthy before flight.
Charging: Always use DJI-certified chargers for safe and efficient charging.
Storage: Keep the battery in a cool, dry place when not in use.
Monitoring: Use the DJI Fly app for real-time battery status and health updates.
Conclusion
The DJI TB51 Intelligent Flight Battery offers a balanced combination of performance, safety, and convenience, making it an excellent power source for the DJI Mavic Air 2. Its smart features and reliable design facilitate safe and efficient flight operations.
